RSM15A

How to set up your RSM15A:

Videos of RSM15A:

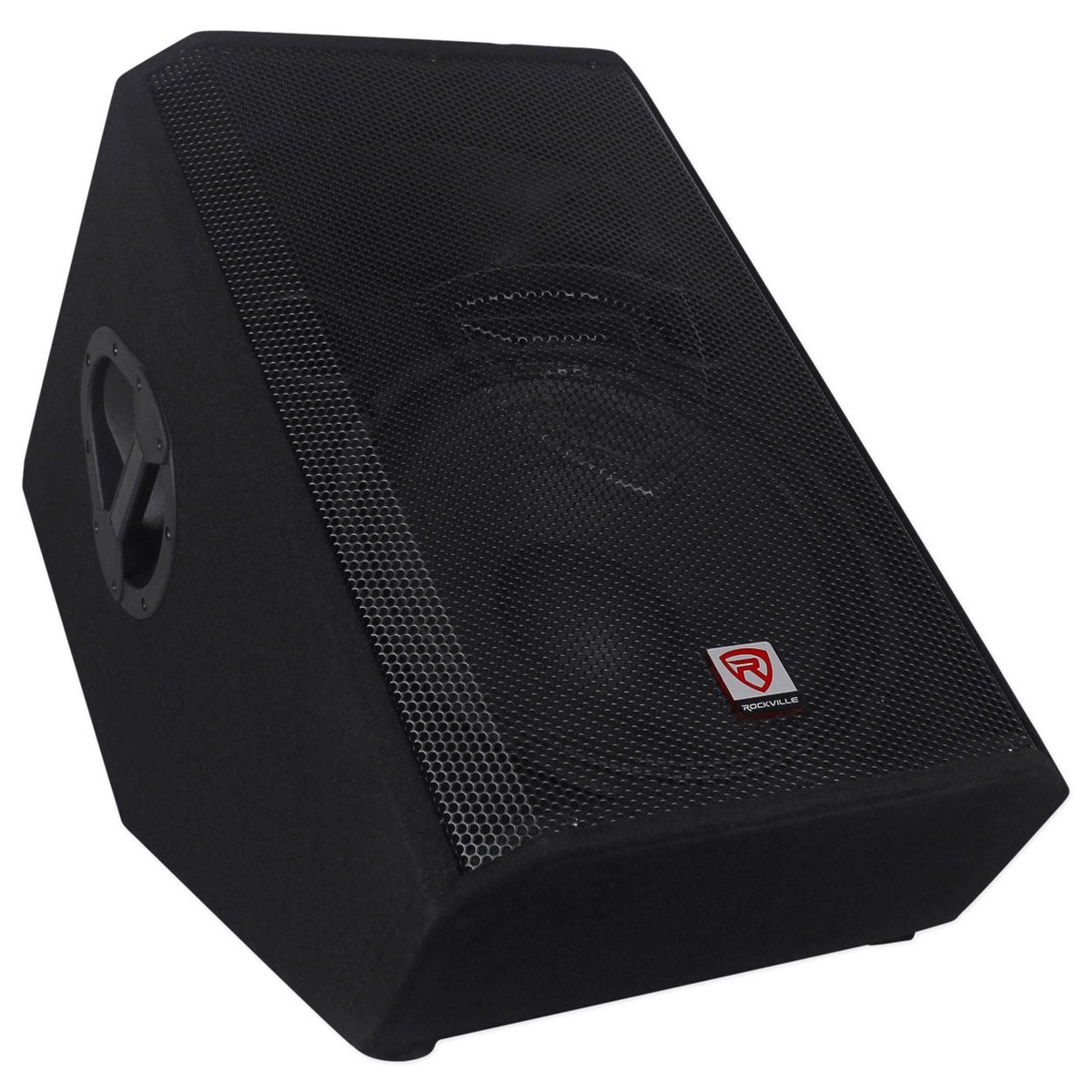

Looking for atop-of-the-line powered monitor solution? The Rockville RSM15A is anincredible solution to your stage monitor needs. With a built-in350-Watt RMS / 1400-Watt peak amplifier and all the latest features,this powered monitor sets a new standard.

Cabinet Construction
Thecabinet is constructed of high quality MDF and features a thicker frontbaffle for added stability. The composition and materials were chosenfor their high strength, light weight, and anti-vibrationcharacteristics. CNC routing machines are used to accurately cut andshape every part, guaranteeing consistency with extreme closetolerances. Skilled technicians assemble each cabinet by hand. Thecabinets are finished in aviation grade heavy-duty carpet. Steel grillsprotect the drivers and recessed carry handles make it easy totransport.

A compact speaker with tons of functionality
TheRockville RSM15A packs a single power amp for the 15 Low Frequency and1.75 High Frequency drivers for a total of 1400 watts of peak power ina 40-pound package. This Rockville speaker features a 3-band EQ, XLRand 1/4 inputs, a feedback filter, low weight, and much more. Exclusivehorn design delivers ultra-wide 70-degree x 50-degree sound dispersion.

A flexible unit for all your monitoring needs
Youcan connect a variety of signals to the Rockville RSM15A, making it avery flexible speaker. Use multiples of them for your main monitorsystem. Use it a keyboard amplifier. Or pole-mount them and use them asyour main speakers. With 1400 watts of peak power there is enough powerto use the Rockville RSM15A for all your needs.

A built-in adjustablefeedback filter to help squash annoying feedback that can creep up whenusing mics in close proximity to a monitor. Get the monitor coverage youneed with the Rockville RSM15A!

A mic/line input gives you the flexibility of plugging in a mixer signal, microphone, or keyboard.

Add an affordable high-performance powered monitor to your Pro setup with the Rockville RSM15A.

Features:

• Rockville RSM15A15 1400 Watt 2-Way Powered Active Stage Floor Monitor Speaker
• 350 Watt RMS / 700 Watts Program Power / 1400 Watts Peak
• High power 15” woofer with 3 KSV voice coil provides incredibly deep bass and acoustic power
• A microphone / line selectable input gives you the flexibility of plugging in a mixer signal, microphone, keyboard, or your guitar
• LINK OUT connection via combo balanced XLR TRS preamp output for multi speaker setup
• Frequency Response: 45Hz-20KHz
• Maximum SPL @1w/1m: 96dB peak
• High-power 2-way pro sound stage monitor speaker system for live sound and playback applications
• Wedge shaped enclosure provides the perfect angle for stage monitoring use.

• Compact and light weight system delivers distortion free sound even at extreme SPL
• Great power to weight ratio

• Linear Class AB amplifier technology: high power, transparent sonic performance
• Internal switch-mode power supply for low distortion audio with superior transient response
• State-of-the-art 1.75” titanium diaphragm compression horn driver for crystal clear high frequency reproduction
• Ultra-wide dispersion, large-format Elliptical wave guide horn
• Custom Molded Steel Grill
• Ergonomically shaped handle for easy carrying and setup
• Aviation Grade Black Carpet
• Rubber Isolating Feet
• Mic / Line level control
• Built-In 3 band Equalizer allows you to control High, Mid, and Low frequencies to attain your preferred sound

• 300Hz to 5KHz Feedback frequency filter
• Adjustable feedback filter

• Balanced ultra-low noise Mic / Line input via combo XLR & 1/4” TRS jack
• Balanced line output via combo XLR & 1/4” TRS jack
• Amplifier clip limit LED indicator & power LED indicator
• Impedance: 4 Ohm
• 115 / 230 Volt switchable power supply with external user serviceable fuse
• Dimensions: 18.6 x 15.5 x 25.3 (L x W x H)

About Rockville Quality Control Procedures:

The Rockville brand standsfor Quality, Innovation and Value. All Rockville products go through themost rigorous quality control standards in the industry. Products gothrough months of extensive testing before they reach your hands. Alluser functions are tested and all internal components are tested forquality. Rockville makes products that are virtually un-breakable!Rockville is one of the only brands in its class to test every conceptmodel for weeks or months before starting production. Once productionbegins, Rockville sends product engineers to their factory to qualitycontrol every line of production. During production every product istested and on top of that Rockville goes the extra mile and has theirhigh level product engineers do an additional quality control. They testa certain percentage of all products from the production line a secondtime to ensure that the quality meets their vigorous standards, and tomake sure that there is never a batch of products with even a slightproblem. All Rockville DJ/PA speakers are backed with a full 1 Yearwarranty, though it is unlikely that you will need to use it.
