HTS820

All About Your HTS820:

How To Set Up Your HTS820:Inputs, Outputs, and Controls on Your HTS820 Explained:How To Set Up The Speakers in Your HTS820:How To Set Up a Smart TV with Your HTS820:How To Set Up the Remote with Your HTS820:How To Set up a Gaming Console with Your HTS820:How To Set Up Karaoke with Your HTS820:How To Set Up Bluetooth on Your HTS820:

Whats in The Box:

• Subwoofer with built-in receiver

• Two Front Speakers

• Two Rear Speakers

• One Center Channel Speaker

• Remote Control

• Signal Cable

• Antenna Cable

• Satellite Speaker Mounting Kits

• All necessary wiring (30-foot cables for rear speakers, 12-foot cables for front speakers, 10-foot cable for center speaker)

• User Manual

• Warranty Card


Description:

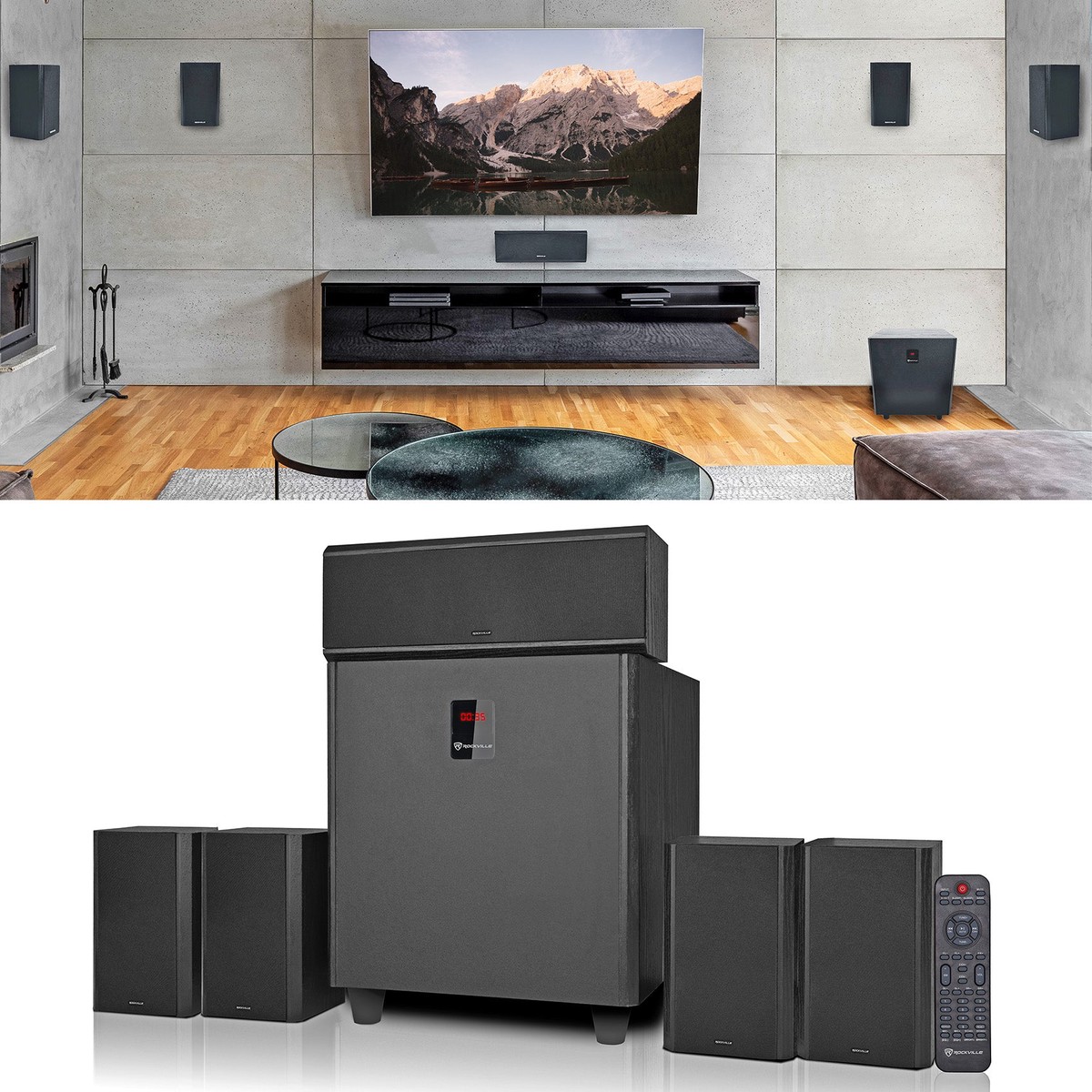

The Rockville HTS820 is a comprehensive 5.1 channel home theater system, designed to deliver an exceptional audio experience. It features:

• An 8″ subwoofer with an integrated receiver

• Two 3 full range front speakers and two 3 rear speakers

• A center channel speaker

• Advanced connectivity with Bluetooth, SD/USB inputs, Optical and HDMI connections

• Built-in media player/receiver with a 5-band EQ and FM radio

• Dual ” MIC inputs with echo control for karaoke fun


Performance Highlights:

• Peak power of 1500 watts and 375 watts continuous RMS power

• MDF wood cabinets and plastic front panels ensure durability and superb sound quality

• Each speaker includes a 3″ midrange driver and a 0.75 dome tweeter for clear and balanced sound

• Independent volume controls for each speaker and subwoofer

• Supports various audio formats, with no noticeable distortion even at high volume levels

• Easy installation with 30 feet of wire for rear speakers, 12 feet for the front speakers, and 10 feet for the center channel

• All sources will play in 5.1 stereo surround


Technical Specifications:

• Frequency Response: 20Hz – 20KHz

• Signal to noise ratio: 75dB

• System Impedance: 8 Ohm for subwoofer, 4 Ohm for other speakers

• Maximum SPL: 108 dB @ 1w/1m

• THD: 0.10%

• Input voltage: Selectable between 110V/60Hz or 220V/50Hz


Dimensions and Weight:

• Subwoofer: 11.81″ x 11.81″ x 11.81″

• Center Speaker: 12.20″ x 3.54″ x 4.22″

• Front/Rear Satellite Speakers: Front: 4.33″ x 3.54″ x 6.93″, Rear: 3.94″ x 4.13″ x 9.25″

• Shipping dimensions: 16.53″ x 16.26″ x 19.37″

• Net weight: 30.86 lbs

• Shipping weight: 32.01 lbs
